S&P Silent 100 Design Ecowatt Bathroom Fan

The S&P Design Ecowatt range of wall and ceiling fans are the quietest fans we have ever tested at Byretech.

S&P ( Soler & Palau ) fans are manufactured in Spain and come from a company that are uncompromising when it comes to quality.

This fan is suitable for mounting in Zone 2 and outside Zone 2 - It is not suitable for Zone 1 or Zone 0 - See Zone diagrams.

For Zone 1 fans see the SELV Low Voltage range.

This fans 5 Watt brushless motor is so quiet that when it's running you can barely hear it, plus as standard it comes with a backdraft shutter so when it's cold outside you don't get unwanted breezes back through the fan into your bathroom.

Unlike any other fan we've tested this one comes with a LED indicating light that illuminates a slice of the fans front cover.

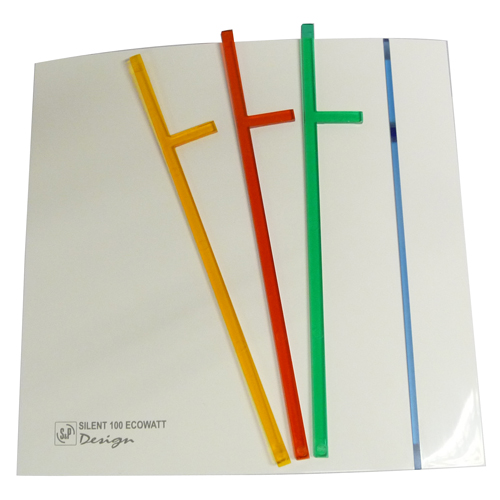

This can be easily changed to either Blue / Green / Red / Yellow depending on what you feel most suits your décor.

This range is designed to be very slim and have minimal impact on the aesthetics of your bathroom and has a power consumption when running of only 5 Watts thanks to its quality 230Vac motor.

Plus they are also very powerful and can extract 85 cubic metres / hour or 1,416 Litres per minute of humid air from your bathroom.

Suitable for fitment in Zone 2 or outside of Zone 2 - See Bath Shower Images above.

The Humidity version without doubt is the most popular, as this allows the fan to be fully automatic and not linked to the bathroom lighting circuit.

With this version the fan automatically switches on when the bathroom is humid and runs until the humidity levels are back to normal. The benefit of this is that it keeps the area at set humidity levels and also helps prevent black mould from forming in the bathroom too.

If used in a ceiling application they need to be purchased along with our Water Trap which prevents water running back into the fan and damaging the fans motor / electronics - Part No. BF20 - See optional extras below

The fans are available in 2 versions and 2 colour options from Byretech.

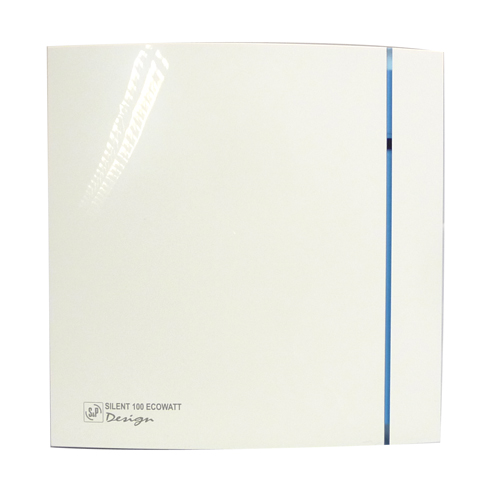

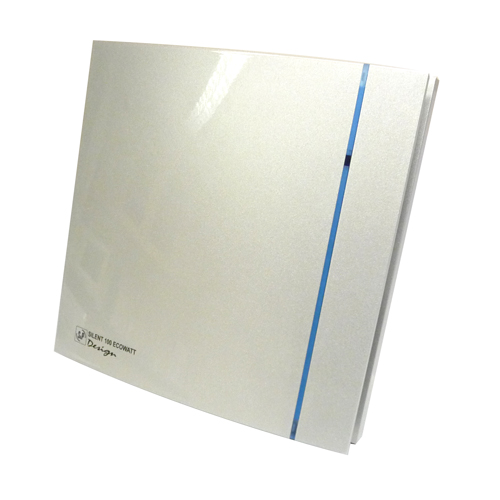

Available colours are White and Silver finishes.

- Standard ( Tmer ) - 1 to 30 minutes run on timer
- Humidity Sensing Version - Operates on humidity, and has a run on timer if required of 1-30 minutes

The fans are generally wall mounted and have incredibly energy efficient motors fitted to them to minimise running costs.

Ceiling mounted fans should always use a water trap to avoid moisture running back into the fan and potentially damaging the fan.

Why do we sell these fans at Byretech ? Well, we have used them in our own properties for many years and they are of excellent quality and do the job they are designed to do very well indeed.

All S&P fans come with a 2 year warranty.

Any questions ? Call our Fan Expert Steve on 01527 522 522 for advice.

- Ultra quiet almost silent
- Brushless super efficient 8 Watt motor
- Slimline
- Splashproof IP45
- Quick installation for walls and ceilings
- LED Indicator to show when operating (4 different colours)
- Can extract 85 cubic metres / hour or 1,416 Litres per minute

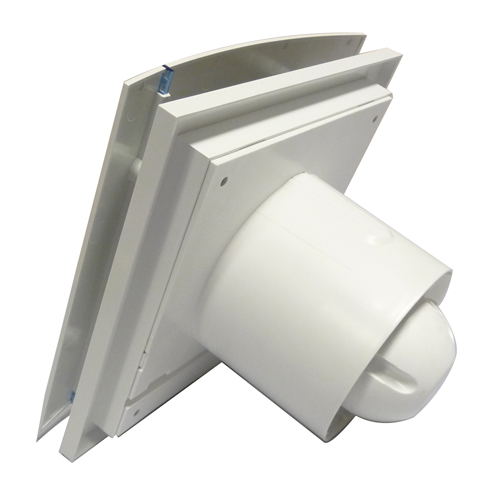

- Backdraught damper on rear of fan
- Low noise 26.5dBA ( Refrigerator average 50dBA, Washing machine average 50-75dBA )

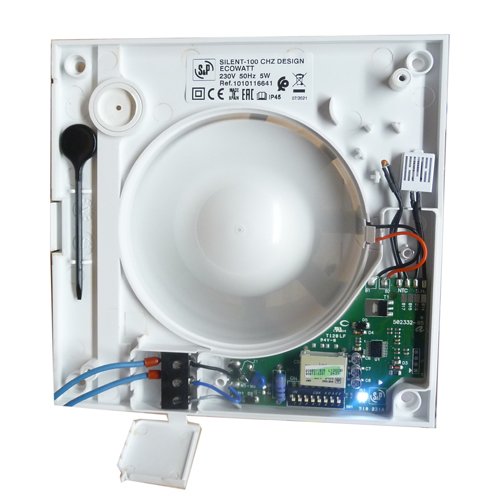

- Adjustable timer between 1-30 minutes
- Simple Timer or Humidistat option available
- CE marked
- 2 year guarantee
- Ceiling application require a BF20 Water Trap also

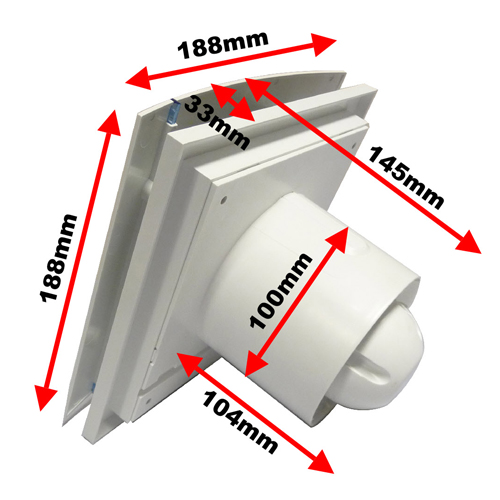

Sizes
- 188mm x 188mm Front plate
- 33mm Front plate depth from wall
- 104mm Depth inside wall
- 100mm Diameter rear fan casing

Silent 100 CHZ White BF65 White Timer & Humidity Sensing Fan
Silent 100 CHZ Silver BF66 Silver Timer & Humidity Sensing Fan

Silent 100 CRZ White BF67 White Timer Only Fan
Silent 100 CRZ Silver BF68 Silver Timer Only Fan
