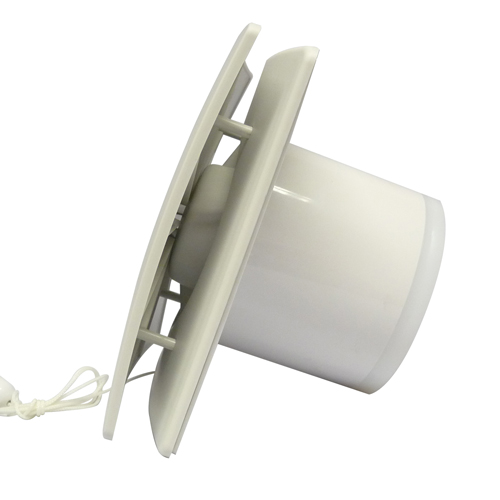

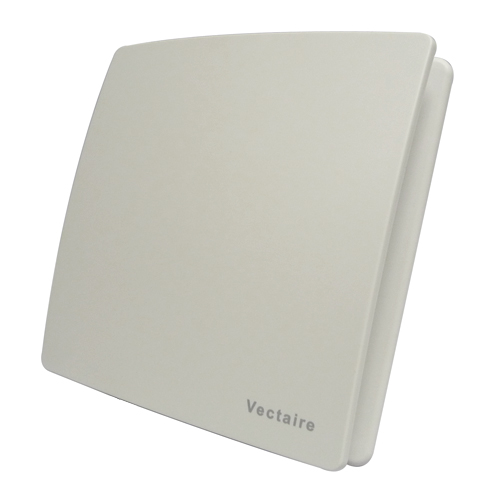

Vectaire Elegance Bathroom Fan - Obsolete

Ref: BF01/02/03
105.00 £87.50
out of stock

Obsolete Product

The Vectaire Elegance Range of Fans are specifically designed for use in UK domestic bathrooms and wetrooms.

Vectaire Part Numbers : EL1003, EL1003DT, EL1003HDT

This range are designed to be "continuous running" fans, which provide constant low level ventilation day and night to your bathroom and they are extremely quiet in background mode.

The fans have two background speed ranges which you can set yourself. (9.5 litres/second and 13.8 litres/second which is the continual low running background ventilation.

If higher speed is required when showering for example, it is possible to either connect the fan to the bathroom light switch or use the pull cord on the fan to switch from low speed to high speed at 28.5 Litres / second extraction.

This fan is suitable for mounting in Zone 2 and outside Zone 2 - It is not suitable for Zone 1 or Zone 0 - See Zone diagrams.

For Zone 1 fans see the SELV Low Voltage range.

The fans can be wall or ceiling mounted and have the most energy efficient motors in the UK fitted to them to minimise running costs.

Ceiling mounted fans should always use a water trap to avoid moisture running back into the fan and potentially damaging the fan.

All Vectaire fans come with a 2 year warranty.

Any questions ? Call our Fan Expert Steve on 01527 522 522 for advice.

- Energy efficient EC motor - lowest energy consumption in the UK
- Low level continuous ventilation to control condensation
- 3 speeds (choice of 2 low speeds at installation)
- Low noise 32dBA ( Refrigerator average 50dBA, Washing machine average 50-75dBA )
- Timer (on relevent model) does not activate unless fan has been running for 2 minutes to avoid unnecessary night-time operation
- Runs continuously at pre-selectable choice of two lower speeds (fixed at installation)
- Anti-vibration gasket
- Front easily removable for cleaning

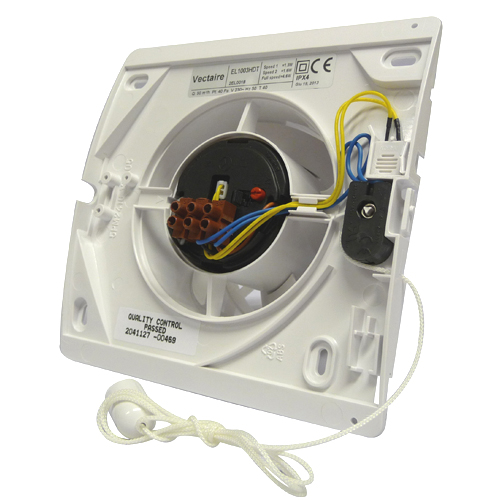

- All models incorporate cord which can be removed to allow other types of switching
- Quick installation for walls and ceilings
- Splashproof
- Part L1 2010 of Building Regulations for enhanced energy saving capability compliant
- SAP Q eligible
- Energy Saving Trust Best Practice Compliant
- IEC 60335-2-80, BT 2006/95/CE and EMC 2004/108/CE European Directive against radio interference and electro-magnetic compatibility
- CE marked
- 2 Year guarantee

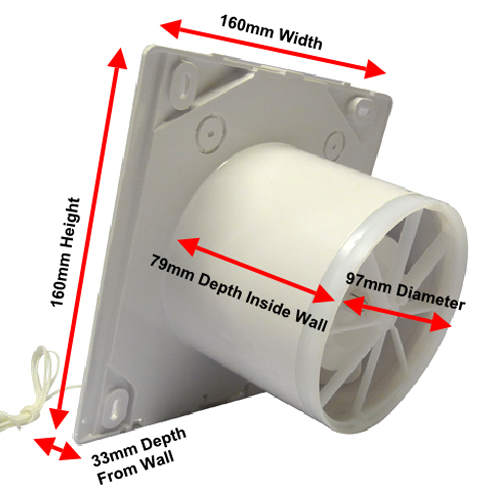

- 160mm x 160mm Front plate
- 33mm Front plate depth from wall
- 79mm Depth inside wall
- 97mm Diameter rear
